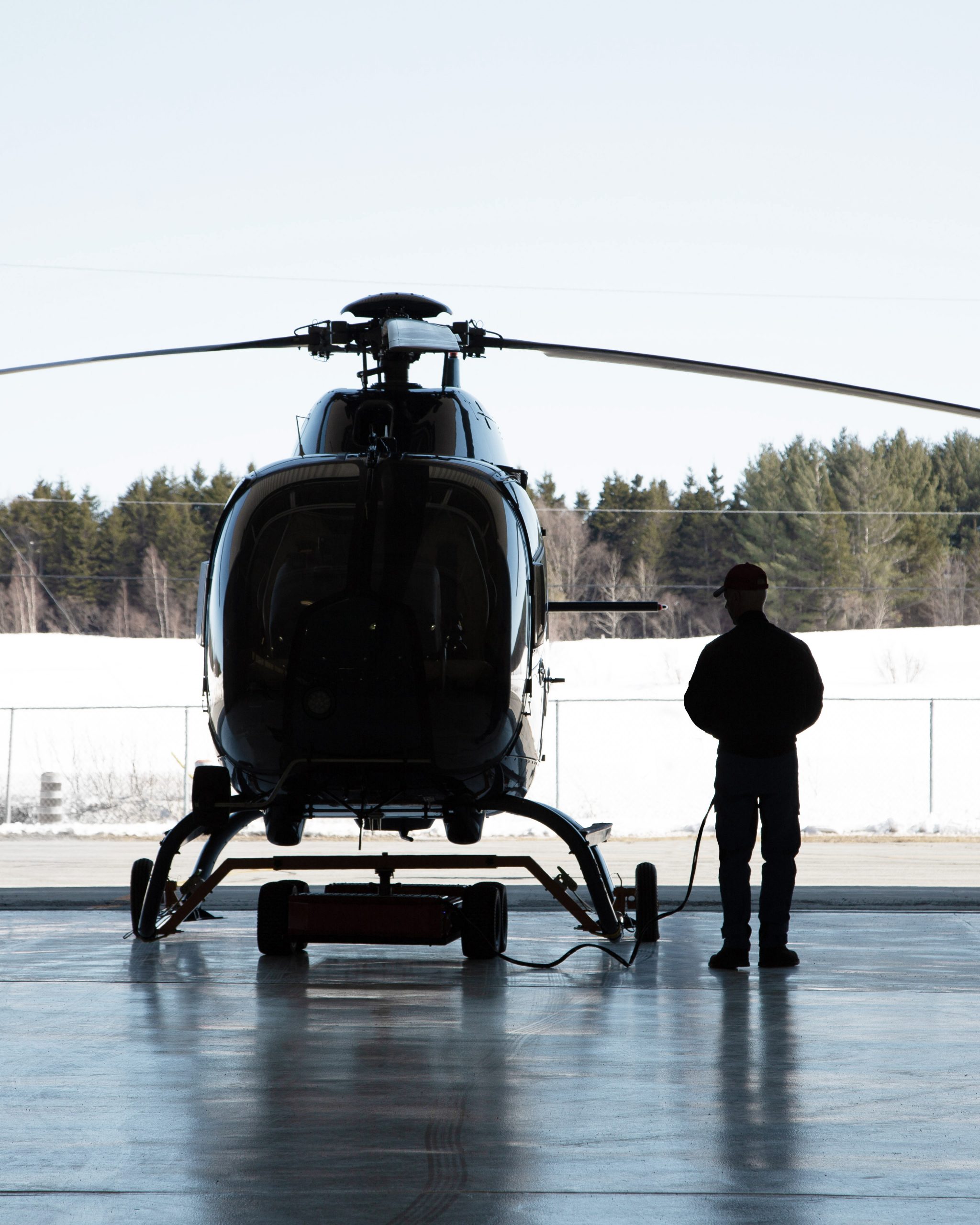

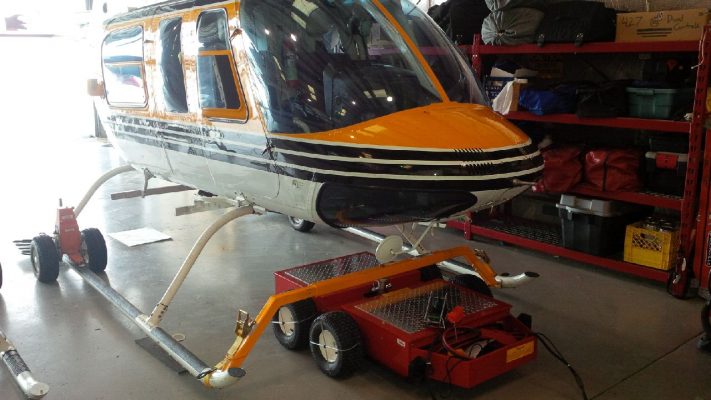

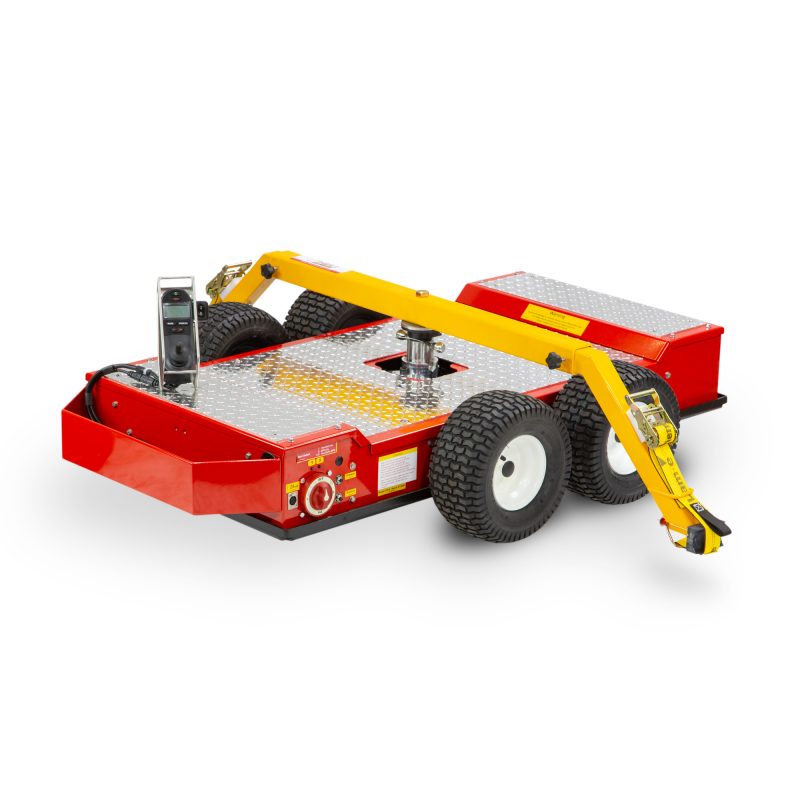

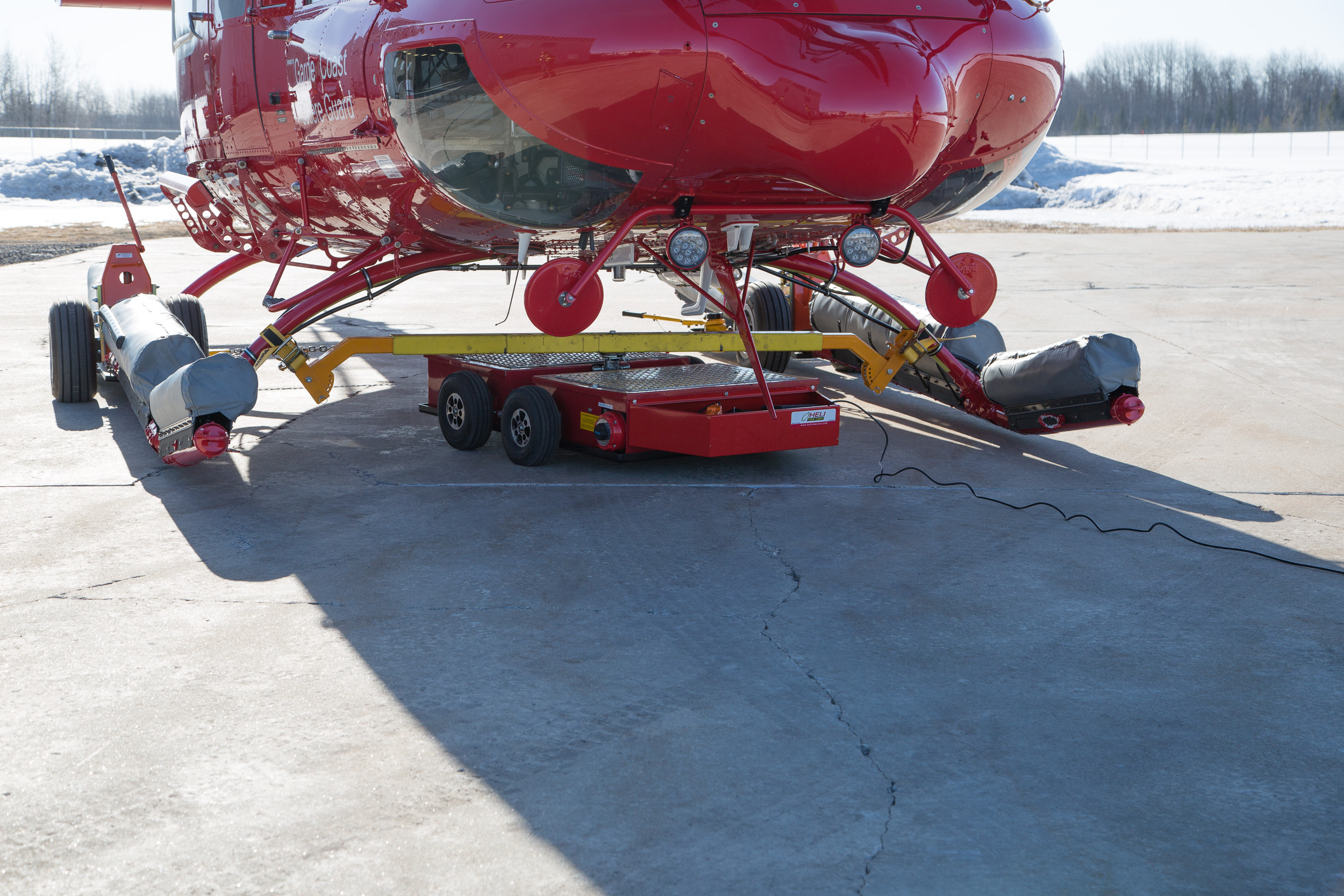

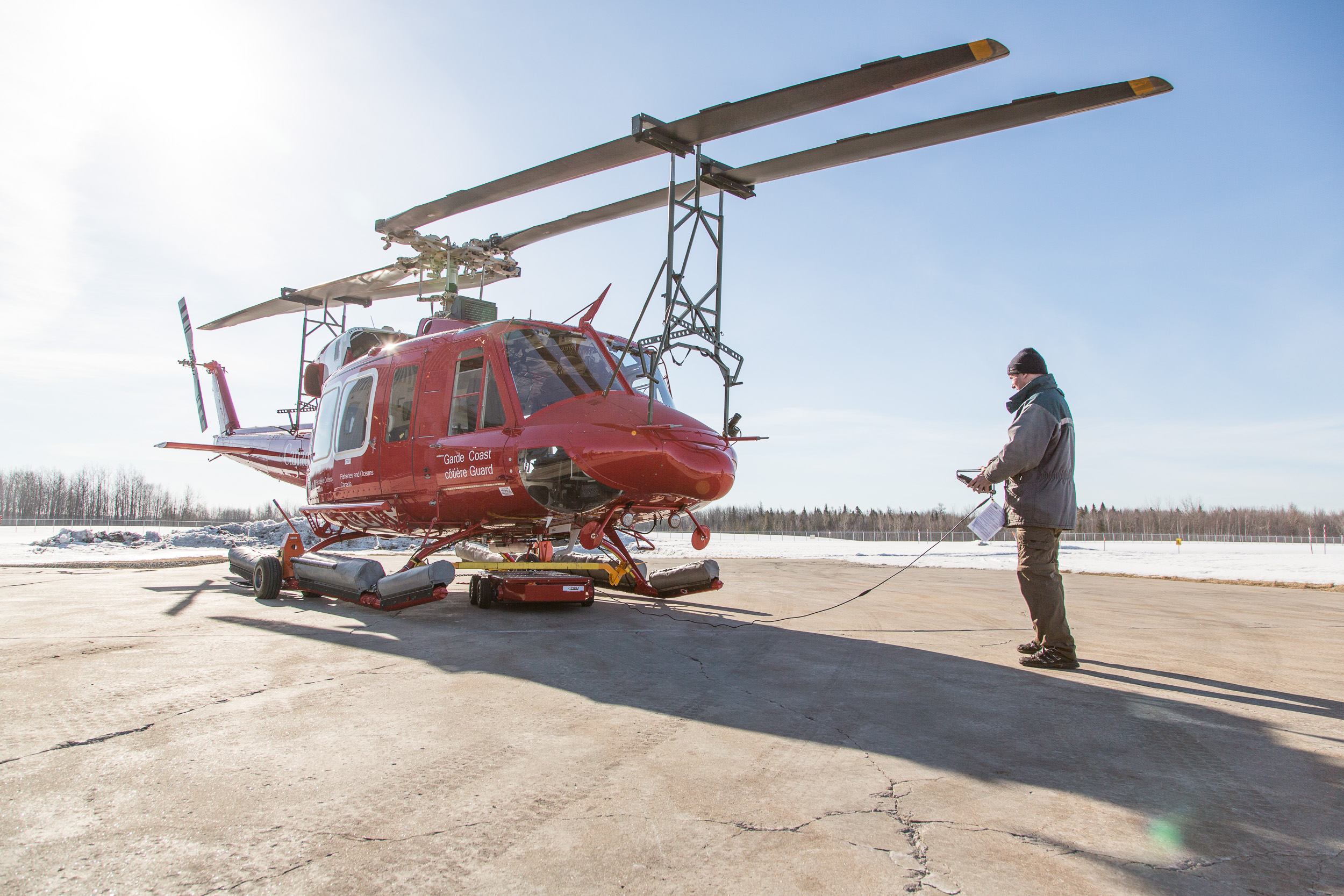

Compact Power for Tight Spaces
The V614 was engineered with one goal: pack as much power in a small unit, working smarter in confined environments. Its compact design makes it perfect for tight hangars and challenging terrain.

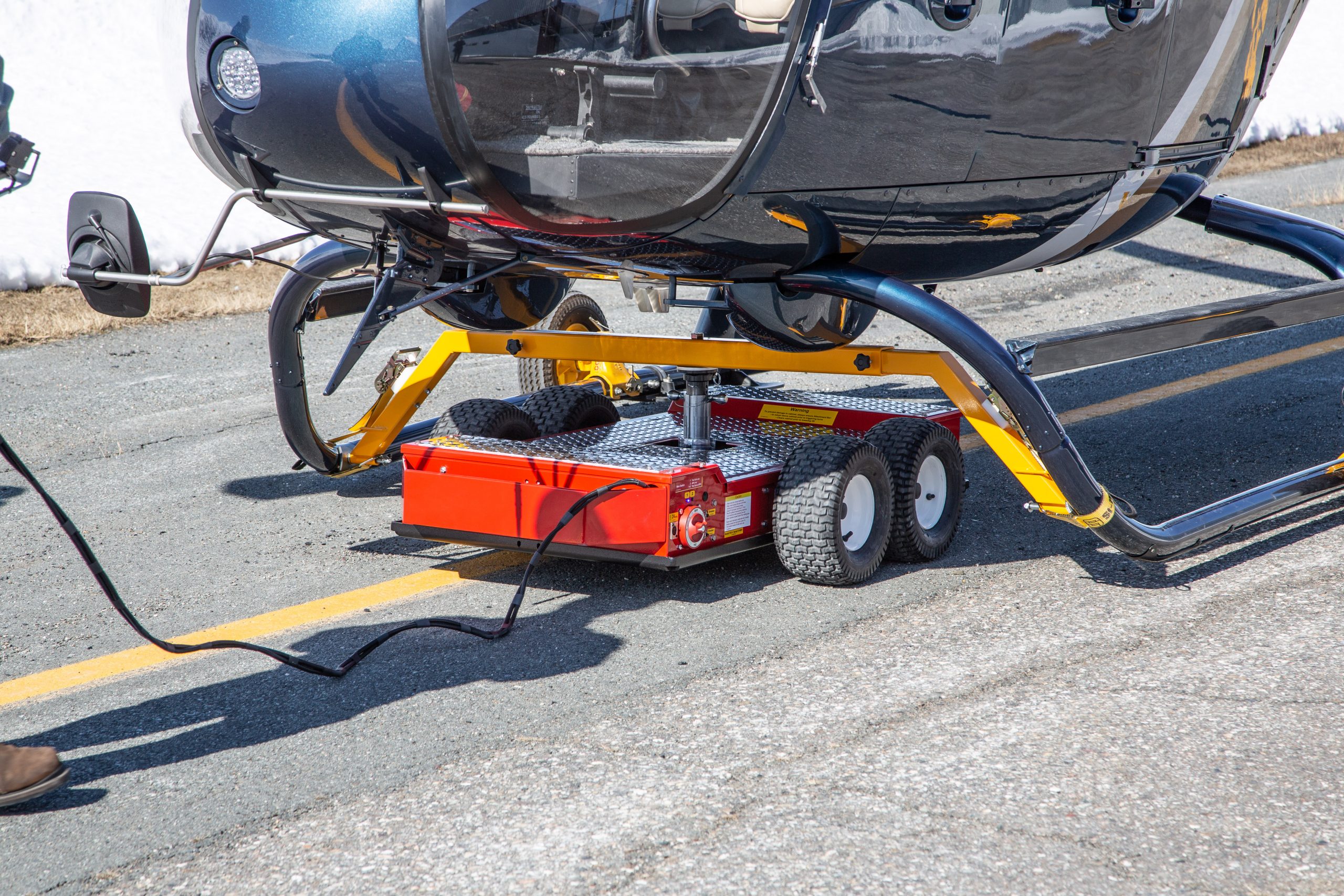

4-wheel drive for maximum traction
Works great on snow and ice
Compact Design for tight environments
Electric telescopic lift system

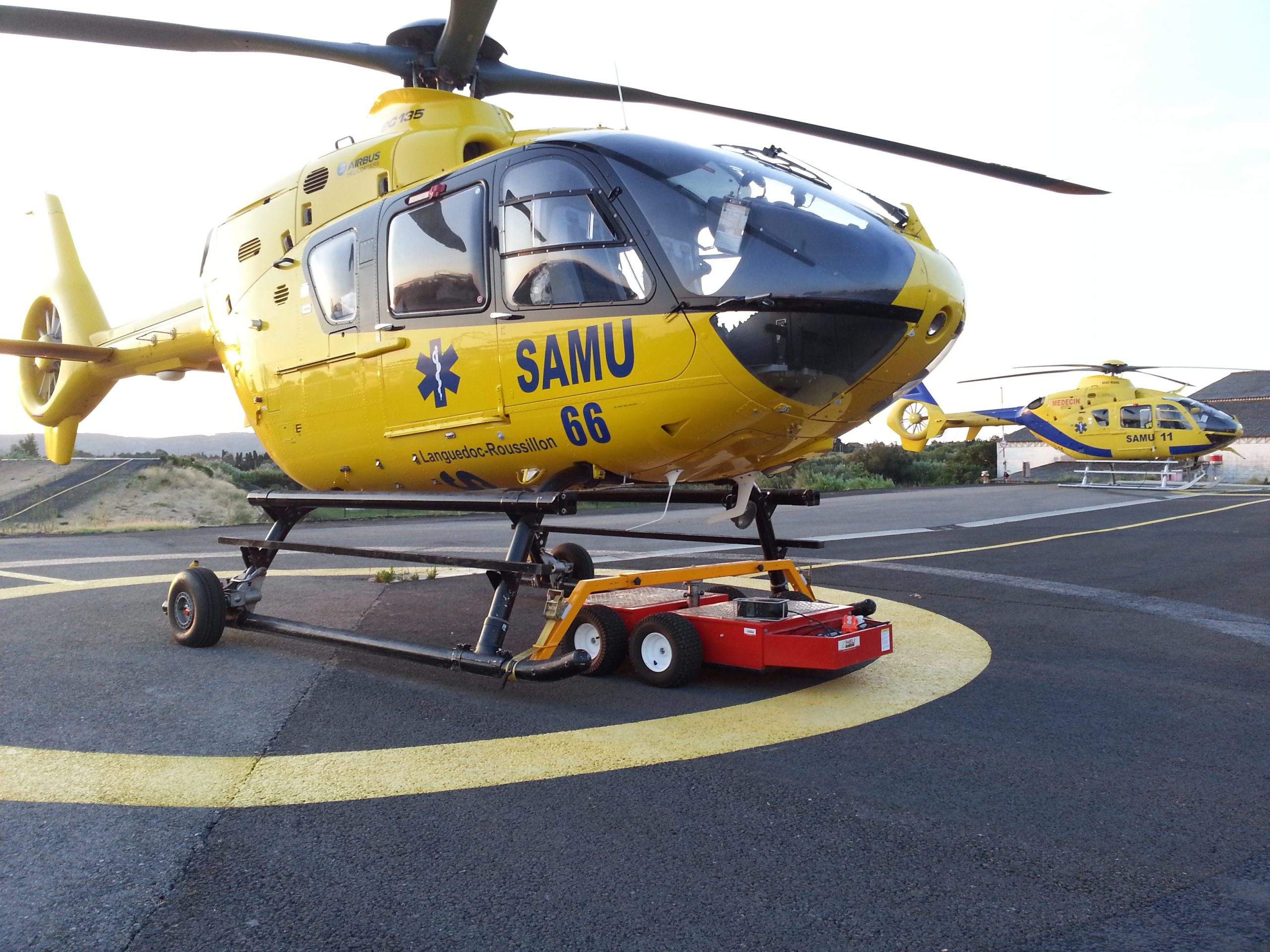

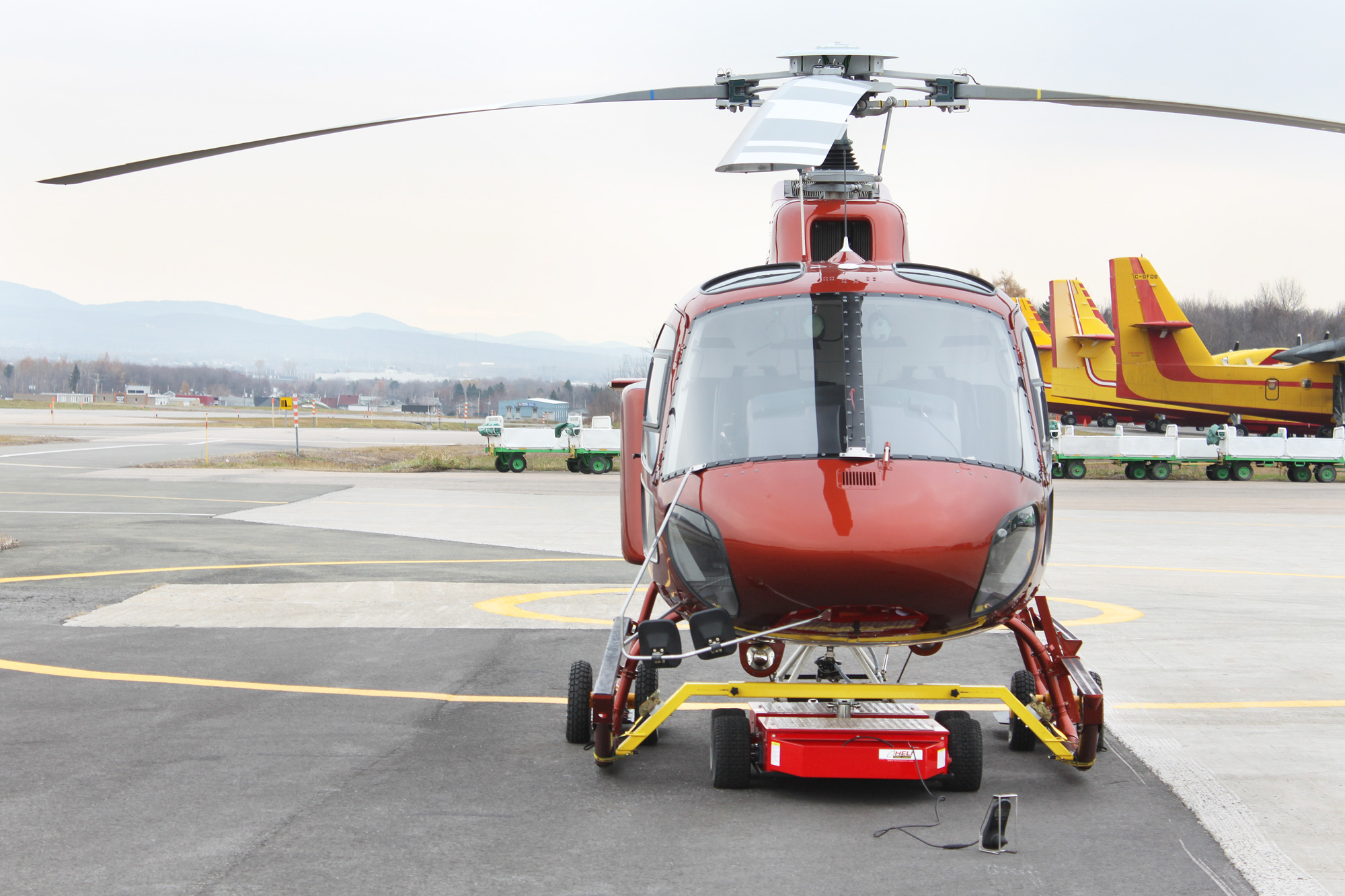

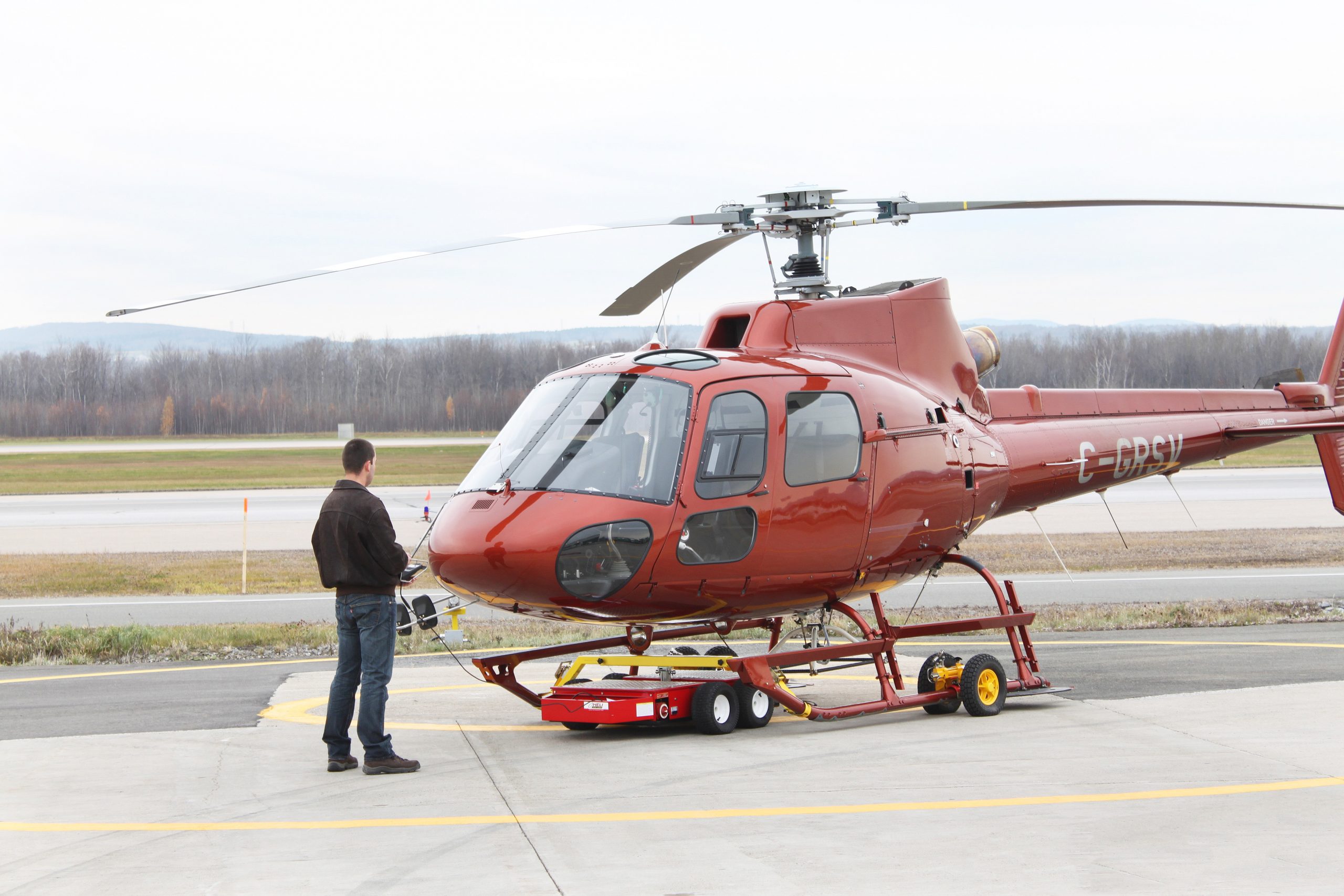

Compatible with almost all skidded helicopters
Automatic braking system
Models
The Heli-Carrier is designed to easily serve multiple helicopter types. Switching attachment hooks is effortless, quick and simple. The switch from one hook type to another requires no tools. Contact us if your helicopter is not listed below to check compatibility.
Attachments
The Heli-Carrier is designed to easily serve multiple helicopter types. Switching attachment hooks is effortless, quick and simple. The switch from one hook type to another requires no tools. Contact us if your helicopter is not listed below to check compatibility.
Specifications
The V600 Series HeliTowCarts are heavy-duty, precision-engineered helicopter ground-handling systems designed for safe, efficient maneuvering in confined hangar and apron environments. Built for reliability and control, they deliver high load capacity, smooth omnidirectional movement, and operator-focused safety features.
| V614 | V616 (Yacht) | V650 | |
|---|---|---|---|

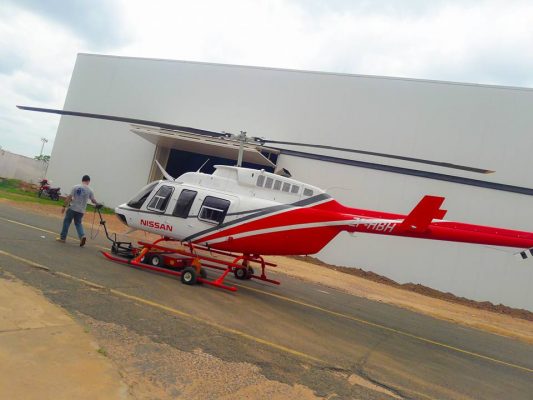

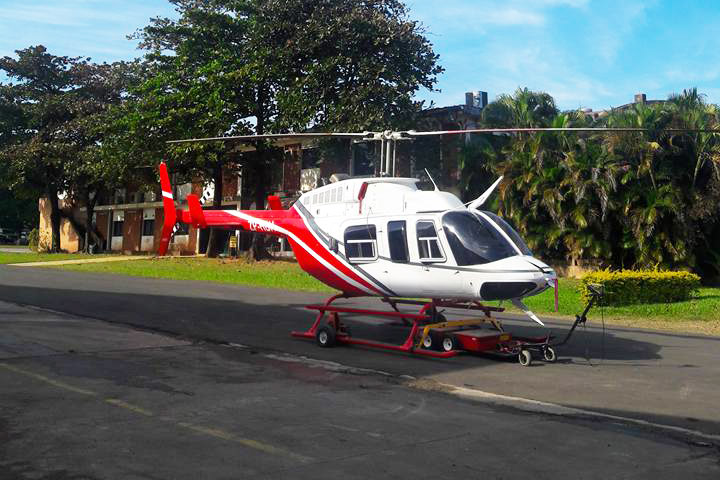

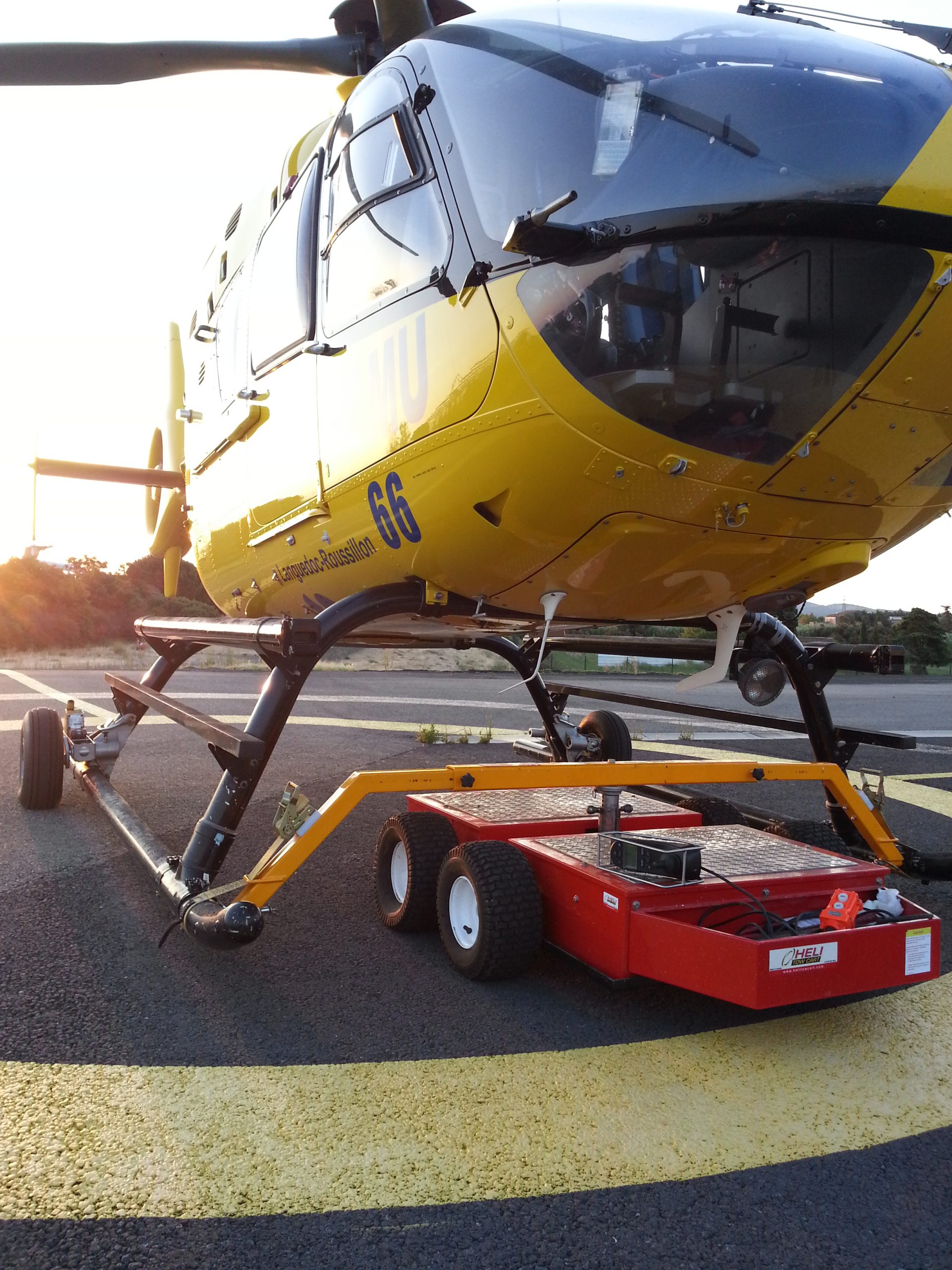

| Compatible With | AS350-355, B206B, B206L, B407, B427, B205-B412, H120, H130, H135, H145, BK117, MD500, MD600, R44, R66, Enstroms, Planes up to King Air. | ||
| Capacity | Towing up to 17,000 lbs (7,700 kg) | ||

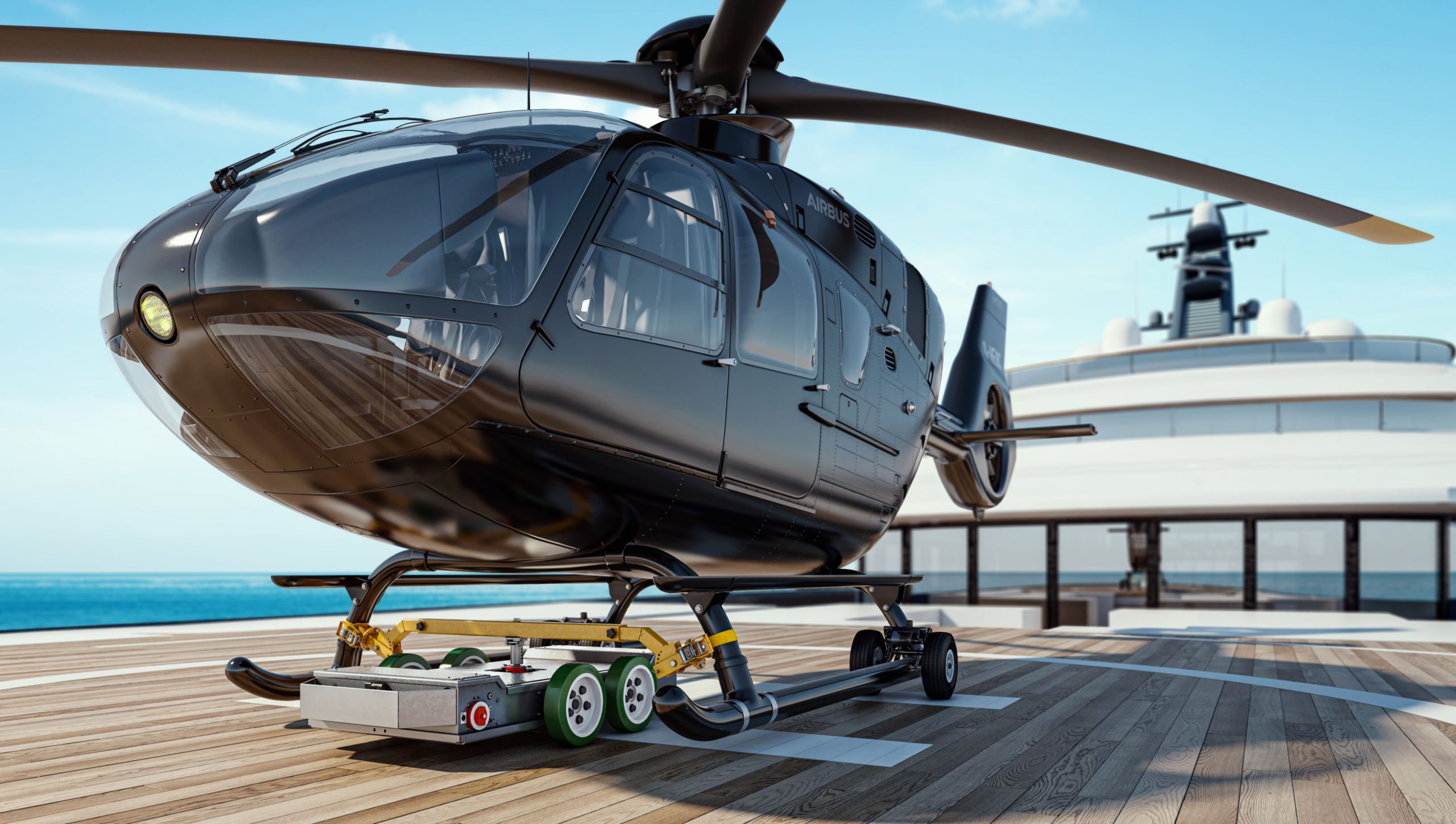

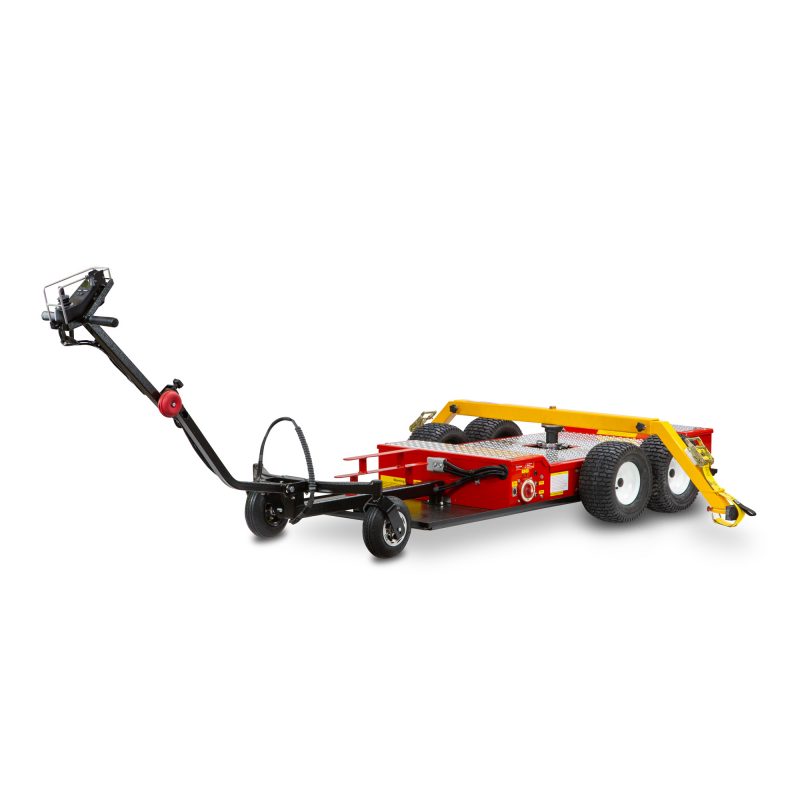

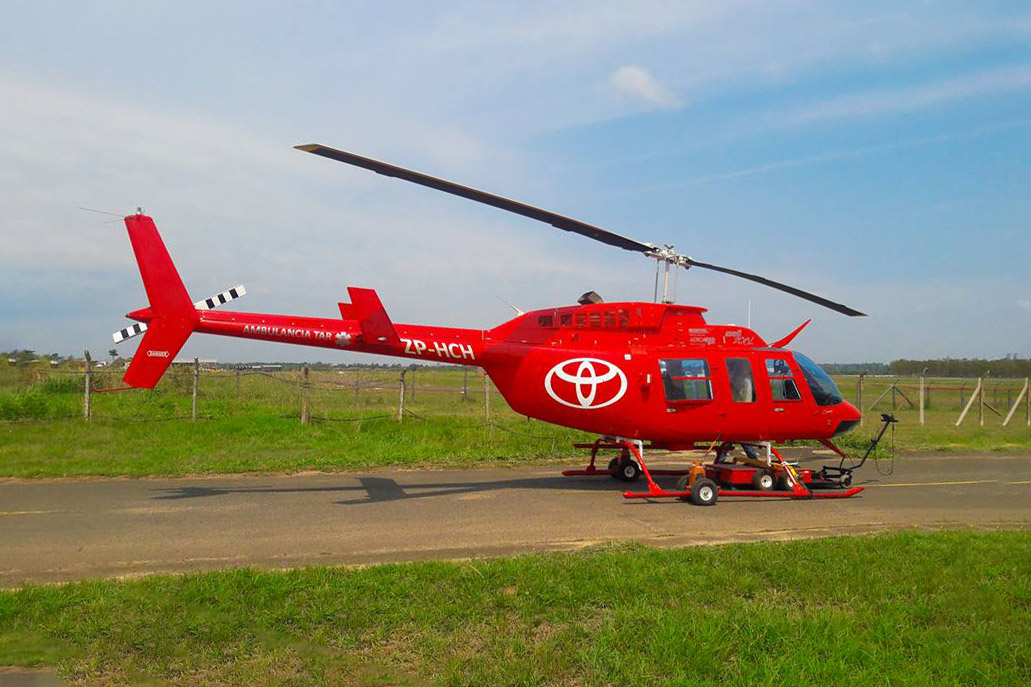

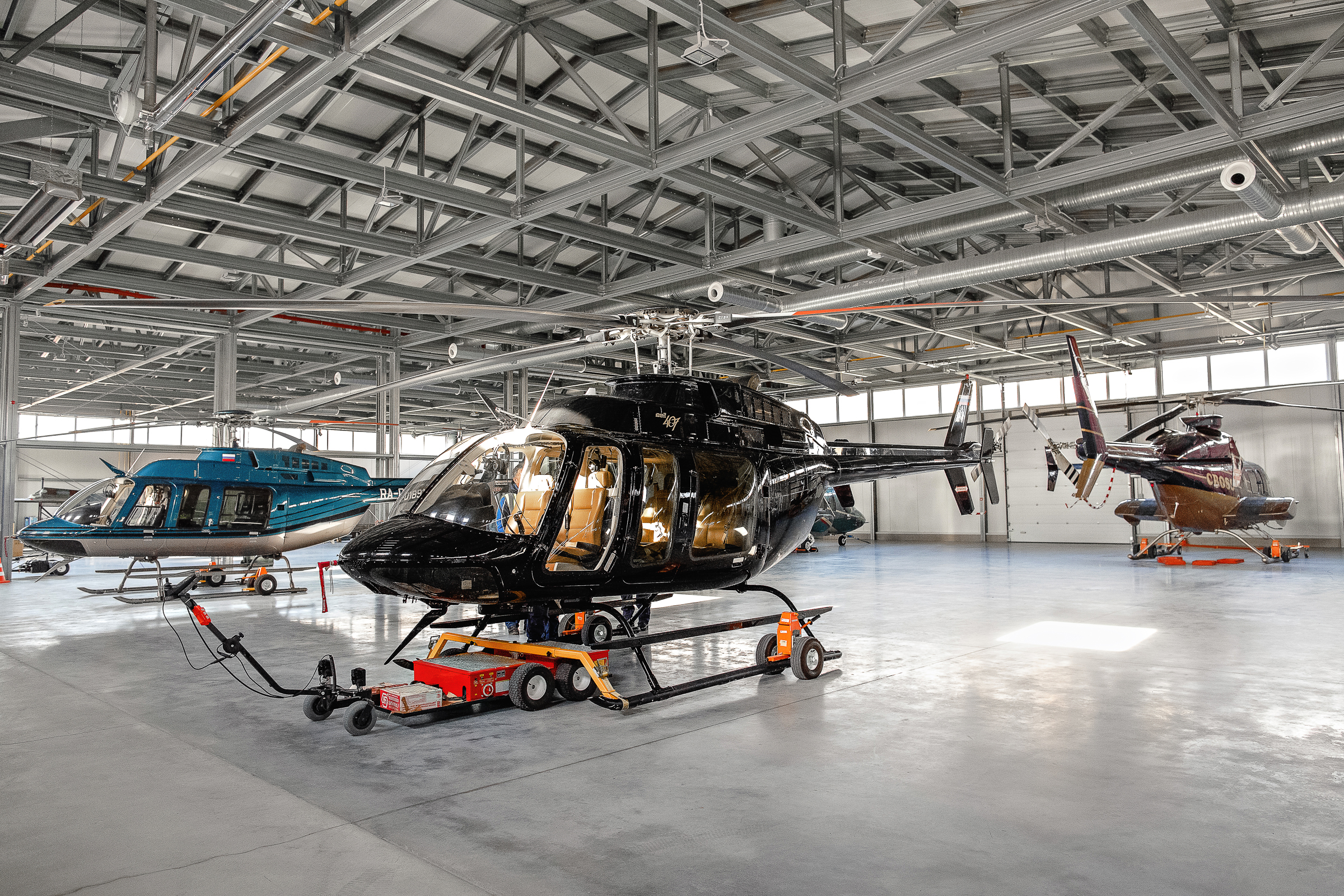

| Ideal For | People needing a universal solution with sufficient traction to move their helicopter. | People operating on Yacht / Vessel | Luxury version for busy FBOs with longer steel plate to allow transport of goods or ground handling wheels. |
| Length | 65" (166 cm) | Folded: 98" (247 cm) Unfolded: 136" (345 cm) |
|
| Width | 42" (107 cm) | ||
| Ground Clearance | 3" (7.6 cm) | ||
| Lifting System | Effortless Electric Lift | ||
| Traction System | 4 × 300 watts motors | ||

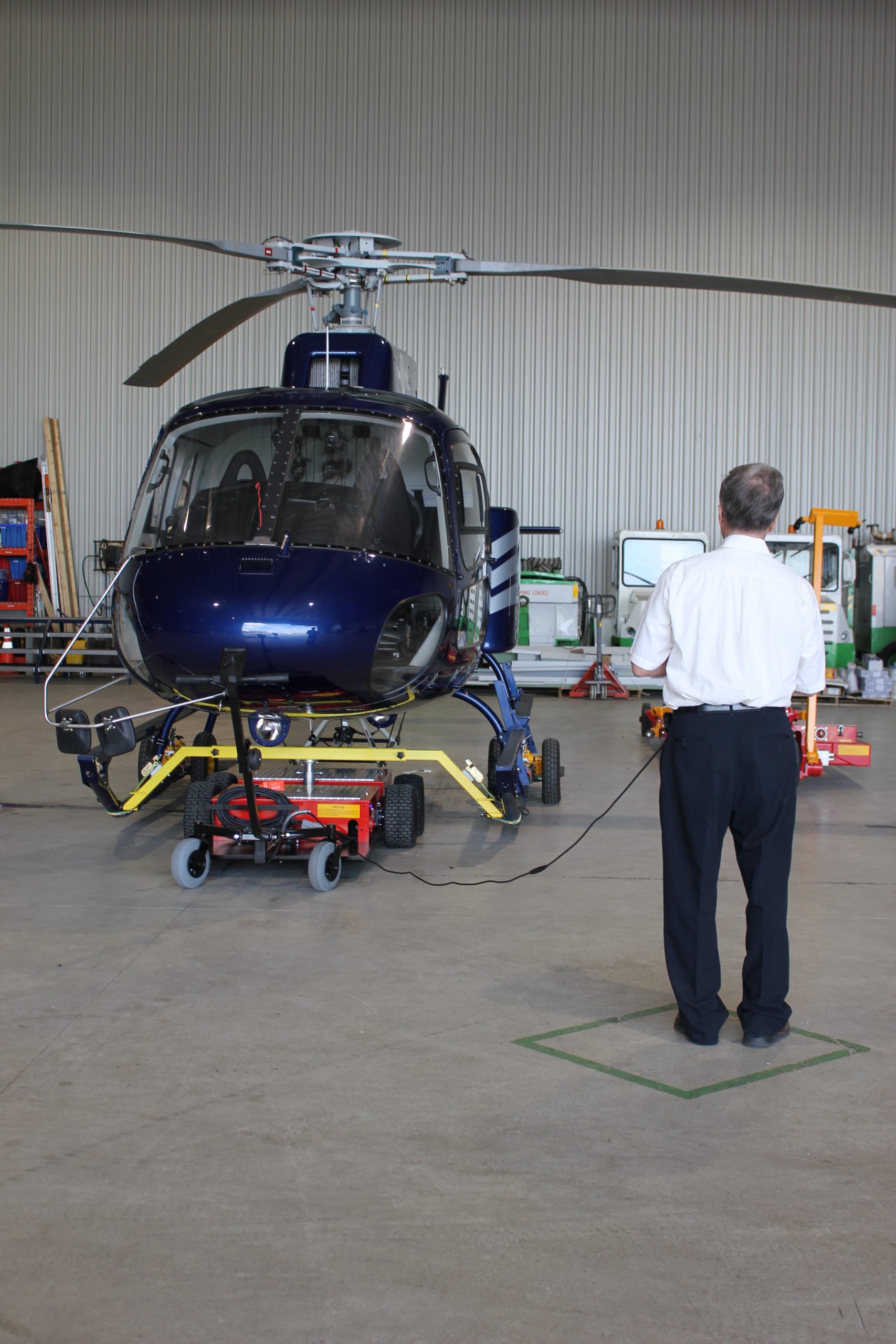

| Handle | No handle, joystick only | Foldable handle for compact storage with removable joystick | |

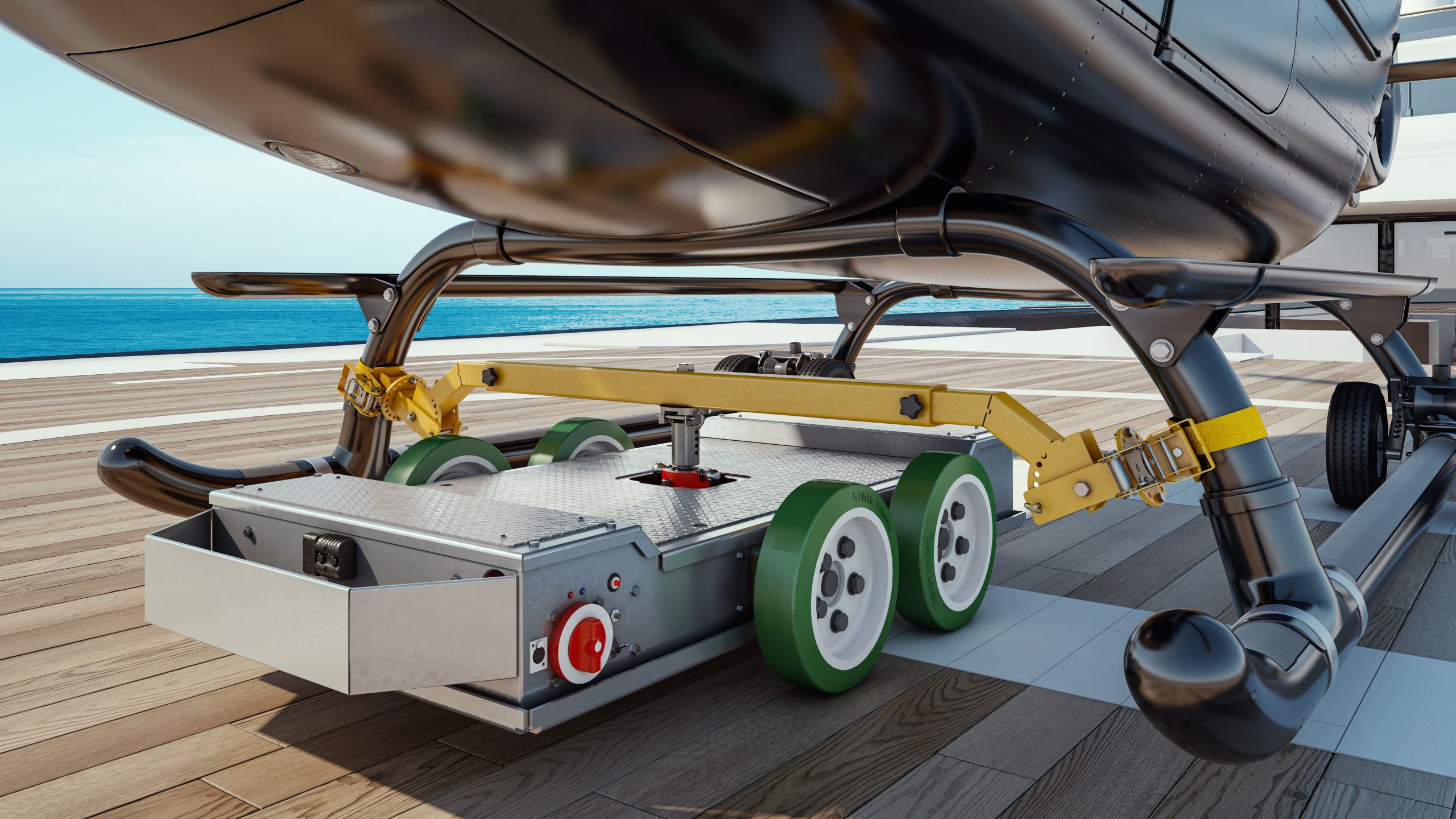

| Traction Tires | 4 × Deep Tread Pneumatic Tire Wheels – Size: 13" × 6" (330mm × 150 mm) | 4 × Non Marking Wheels – Size: 12" × 3" (300mm × 80 mm) | 4 × Deep Tread Pneumatic Tire Wheels – Size: 13" × 6" (33 × 15 cm) |
| Front Wheels | N/A | 2 × Swivel wheels 6" (15 cm) | |

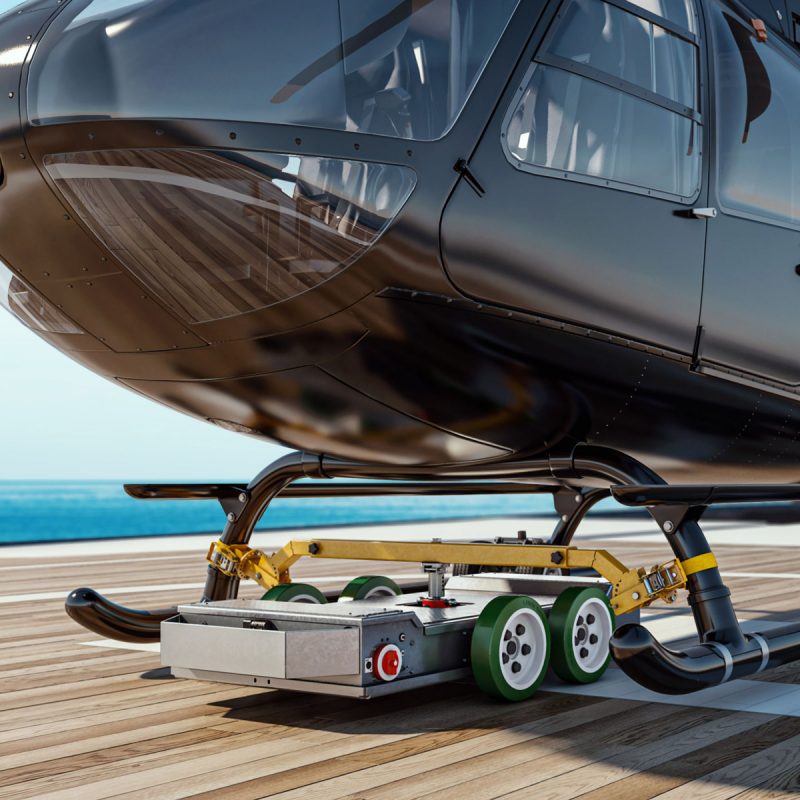

| Body | Standard Body | Galvanized Body for maximum resistance against marine environments | Long Body |
| Batteries | 6 × 12V deep cycle batteries (Group 40), 40–50 amp hours (Not included) | ||
| Battery Autonomy | 12+ Hangaring Cycles Based on 500 ft / 150 m distance on flat surface with an exterior temperature of 59°F / 15°C. Helicopter weight may also affect battery autonomy. |
||
| Battery Charger | 4 Amps Battery Charger, works on 115V / 230V (Charger included) | ||
Explore Our Custom Options
Elevate your Heli-Carrier’s capabilities with our versatile range of custom options designed for enhanced performance and convenience. From advanced lighting systems to additional power sources and adaptive components, each feature is engineered to meet the unique demands of your operations. Optimize your carrier to excel in any environment and situation. Discover the possibilities and tailor your Heli-Carrier to perfection.
LED Light System
Light up your environment during the night shift without requiring the help of more personnel. This powerful LED lighting system ensures safe helicopter tail protection while driving. It also makes the positioning and attachment of the carrier under the helicopter much easier in low light environments.
P/N: OLS
Pivotal Counterweight Arms
Our pivotal arms are designed to navigate around obstacles on helicopter skids, such as pop-out floats and other equipment, ensuring a smooth operation.
P/N: OPCA-BIS
Flat Pivotal Counterweight Arms
Flat pivotal counterweight arms allow to contour obstacles installed on helicopter skids such as Airbus pop-out floats on H145.
P/N: OPCA-BIS-FLAT
Extra Battery Compartment
Double your power capacity with additional battery compartments. Each kit holds four extra batteries, extending your carrier’s operational autonomy.
P/N: OEBC
(for V1000+ series only)
Leg Extensions
Extend the length of your Heli-Carrier to clear underbelly equipment such as FLIR, Wire Cutter, Antenna etc. Available in 30″, 40″, 48″ or custom length.
P/N: OALE-[LENGTH]
